Friendly
Solid Beam Aluminum Ladders
Three Section

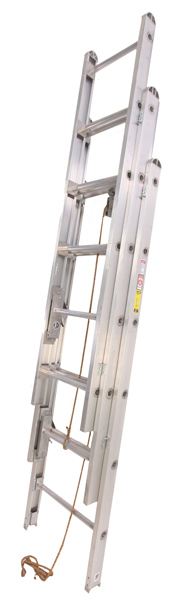

Series 912
These ladders were originally produced for the Forestry Departments for use on their brush pumpers. This ladder was designed for a maximum closed length to fit in a restricted space. Due to the compact design, this ladder does not have a cable pulley to help extend the fly section. In order to extend the ladder, you must first extend the fly section by hand and use the rope and pulley to fully extend the ladder.
See our Aluminum Price List for current pricing.
Series 912
- 3-1/4" Channel Rail
- 750 lb Duty Rated
- Prong Feet as Standard
- Rubber Safety Shoes Optional for Hard Surface Use
| Specifications | ||||
|---|---|---|---|---|
| SERIES 912-86 3-SECTION | ||||
| Size | Closed Length | Width | Banking Thickness | Weight* |
| 16' | 86" | 24" | 8.125" | 65 lbs |
| SERIES 912-100 3-SECTION | ||||
| Size | Closed Length | Width | Banking Thickness | Weight* |
| 20' | 100" | 24" | 8.125" | 80 lbs |
| All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125" due to the type of rivets, nuts, bolts etc. used. If you require precise dimensions, please call our office and request a copy of our current field dimension sheets. | ||||
| * Weight listed is actual weight of product only. For shipping purposes, please call our office for packaged weight before obtaining freight estimates. | ||||
| Note: Due to compact size - you must manually extend fly/top section by hand and use the rope and pulley to fully extend the ladder. | ||||
We suggest all Fire Departments refer to both the National Fire Protection Association (N.F.P.A.) and the International Fire Service Training Association (I.F.S.T.A.) for complete and proper practices and usage of Fire Service ladders.
Association (N.F.P.A.)
1 Batterymarch Park
Quincy, MA 02169
Phone: 1-800-344-3555
Fax: 1-617-770-0700
www.nfpa.org
Training Association (I.F.S.T.A.)
930 North Willis
Stillwater, OK 74078
Phone: 1-800-654-4055
Fax: 1-405-744-8204
www.ifsta.org
